La Cabronita build (2)

La Cabronita nearly completed

Here’s the original La Cabronita build before I took it all apart again to refinish Shell Pink!

La Cabronita levelling the neck pocket

La Cabronita levelling the neck pocket

The body came from Guitar Mill. Although I have bought unfinished bodies from them in the past, I’ve never before experienced one of their finished bodies. I’m pretty sure that the blue finish was pre-cat “lacquer” over epoxy primer.

The body is made from Paulownia and is amazingly light!

There was a heavy build-up of finish in the neck pocket and the first job was to remove it so that the neck heel had good contact with the pocket.

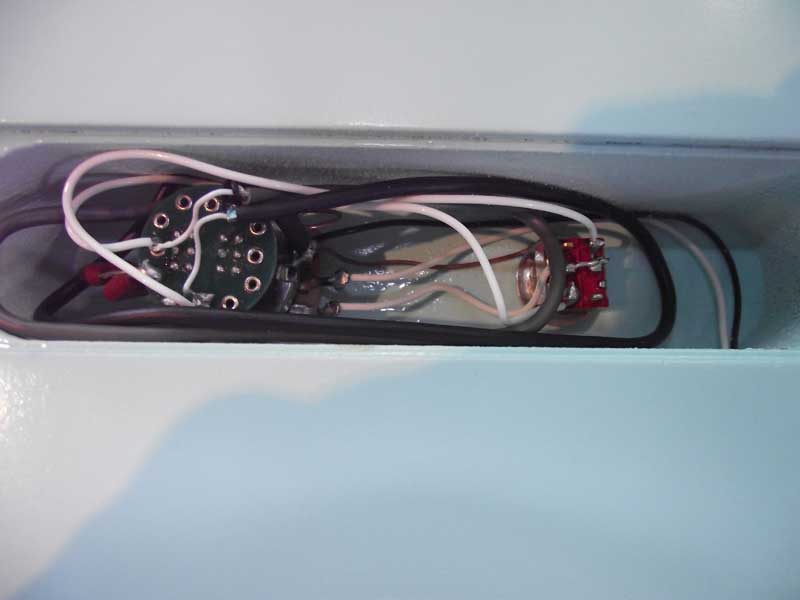

La Cabronita control cavity

La Cabronita control cavity

The controls are, in keeping with the guitar’s ethos, pretty simple. Just a 3-way switch and a volume control which has an S1 switch which clips some of the high frequencies, like an on-off tone control.

The neck was supplied by Musikraft. It’s a chunky affair, made from flame maple with a rosewood fretboard. The frets were not perfect so I levelled and crowned them as a matter of course.

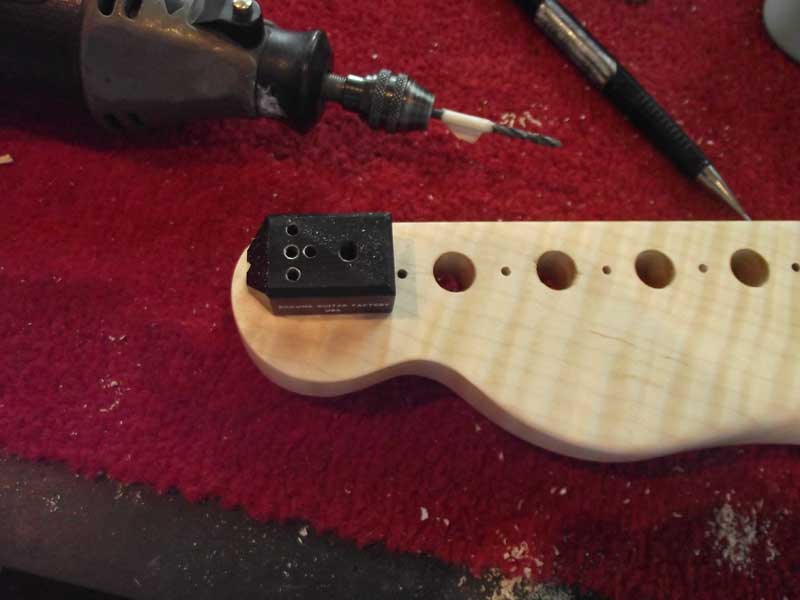

La Cabronita using jig for tuner pin location holes

La Cabronita using jig for tuner pin location holes

I used a Stewart Macdonald jig for drilling the  locating post holes for the Sperzel non-locking tuners.



La Cabronita neck fixing kit

La Cabronita neck fixing kit

I fitted my neck kit as the guitar would be dissembled for shipping back to Italy and we wanted reassembly to be straightforward.

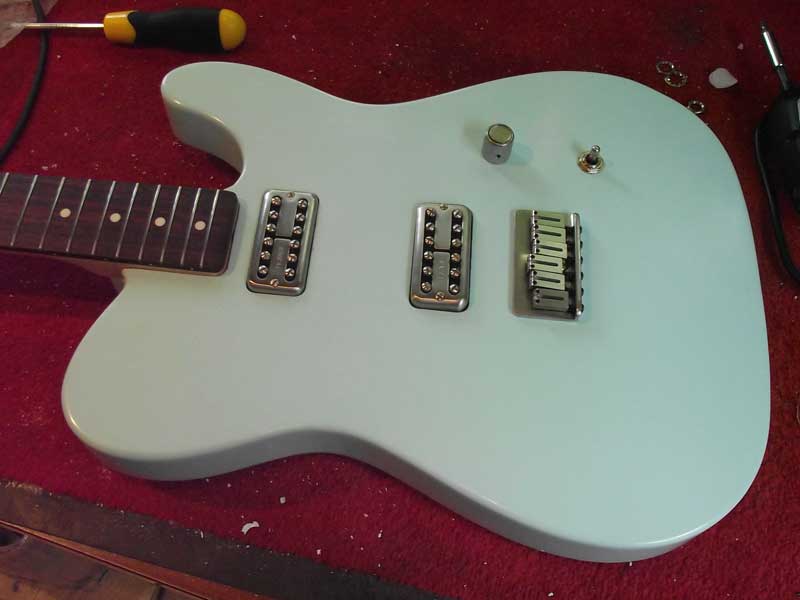

Here is the guitar nearly completed. It did get strung and set up before the customer asked me to repaint it.

I’ll post some more as the (re)build progresses.



La Cabronita nearly completed

La Cabronita nearly completed
